GEMINI ELISA processor

Automation / Elisa automation/

Compact Fully Automated EIA Processor

Immunomat SERION ELISA Analyzer

compressor_feature

Compact Microplate Processor

TUBE IN – RESULT OUT

Fully automated microplate processor for low throughput applications

Total walk away system
Flexible time management with LIS connectivity
Modularity – open system
Ease of use, installation and maintenance
Assay performance with disposable tips
High process safety with triple pipetting control
Convenient programming of assay protocols
Proven reliability
The system is in compliance with the In-vitro diagnostic directive 98/79/EC

See specification

Gemini Combo with
ifa application available

OPTIONAL

Efficient dual technology– IFA and EIA – on a single instrument
Processing of up to 16 IFA slides
Quick and reliable: no risk of cross-contamination
Flexible and intuitive slide designer

Reading

Absorbance reader with up to 8 different filters
Single or dual wavelength reading
End point and kinetics
Shaking

Incubation

Two independently controlledincubator chambers (up to 45°C)with shaking (20 Hz)
Three room temperatureincubation chambers

Washing

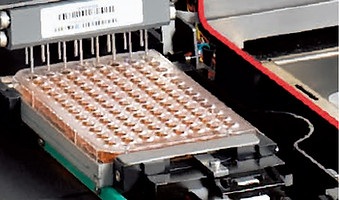

2 x 8-channel washer (aspirate and dispense)
Three wash buffers
Sweep mode, soak, top and bottom wash, variable pump speed

Safety and in-process control

Pipetting pressure monitoring
Capacitive liquid level detection for optimal identification of fibrin clots and insufficient volume
Colorimetric dispense verification
Positive identification of barcoded samples and reagents

Capacity and throughput

Initial loading of up to 192 samples
Continuous loading
Three disposable tip rack positions
Two deep-well plate positions for pre-dilution and / or archiving

Ease and flexibility

Flexible scheduling of up to three plates
Graphical assay protocol editor
Combination of multiple assays on one plate
Proven software reliability
Bi-directional LIS connectivity, ideal withrandomaccess instruments
Based on established EIA software platformwith more than 4,500 placements worldwide

Pipetting

PipettingLiquid pipettor for disposable tips (300 μl or 1100 μl)
Flexibly programmable for singlepipetting, multiple pipetting, multipledilution steps, mixing andarchiving

Photo Gallery

See feature

Easy integration - no limits

1.Additional functionality through middleware software

Easy integration: Wide range of interfaces allows consolidation of results from other instruments

Connects host: Provides smooth real time bi-directional communication between device and LIS

Connects instruments: Operates with single or multiple GEMINI installations

2.Additional benefits

Short/long term data storage: Can operate with local dbase or SQL server

Retest management: User definable retest and reflex management

Drill down: Extensive drill down capability on sample or plate data
Open and definable: User definable functions (e.g. reporting) allows maximum flexibility
Closed and secure: Software can be locked to operate as a secure closed system

Other microplate products

Semi-automatic ELISA READER

Easy operation system with touch screen or mouse and large LCD display.
8- channel optical fiber system enables 5 second reading for the whole plate.
Bichromatic measurement. Calculation modes include ABS, cut-off, curve, linear, log and exponent regression.
Multi-assay feature enables up to 12 different assays on one plate.
Large memory to store up to 500 test protocols and 10.000 results.
Multiform result output including patient comprehensive report.
Random pos & neg control.

Microplate Washer RT-3100

User friendly operation system with large LCD display
Washes flat, U and V-bottom strips and plate
12-way or 8-way manifold, automatic and manual positioning
Large memory, up to 100 wash protocols can be programmed
Multi-channel, 1 or up to 3 for wash, 1 for rinse and 1 for waste
Plate shaking function, time and speed are adjustable
Two 96-well plate incubation positions (optional)
Liquid level detection and alert function - Easy maintenance

Compatible for Elisa Microplate or Cell Culture Plate
Temp Range: 25~60℃
Frequency: 250-1200rpm

Microplate incubator & shaker

Immunomat SERION ELISA Analyzer

The ImmunomatTM is a 4-plate benchtop automat with integrated pipetting system, plate transporter, ELISA washer and reader. Four plate positions and incubators with agitation function to guarantee an efficient workload of the instrument allowing the processing of up to seven microtiter plates. Of course, the system is in compliance with the in-vitro diagnostic directive 98/79/EC.

Highlights

SERION ELISA Analyzer for medium to high throughput applications
Validated for antibody detection in serum, plasma or cerebrospinal fluid (CSF), for avidity determination and antigen detection with SERION ELISA immunoassays
Short loading times by barcode identification of samples, reagents and microtiter plates
Processing of up to 16 different assays per plate
Reload function for patient samples, reagents and microtiter plates
2D hand barcode scanner for parameters of quality control certificates
Multishot dispenser function and memory function for tip racks
Optimize function for scheduling for an efficient workload of the instrument
Clot detection and bubble kill function guarentee walk-away functionality
Level sensors for fluid containers with automated warning in case of lack of reagents or filled waste container
Easy access to buffers and reagents
Fast and quantitative evaluation of SERION ELISA immunoassays
Parameter- or patient-orientated result reports
Listing of test reagents
Import/export function for reagents
Integrated reports for quality controls of standards and controls
Bi-directional connection to laboratory software systems via ASTM interface
